Flushing cistern GD 2

Product Number
38986000
EAN
4005176924781

Product Description

  • 6 - 9 l adjustable
  • adjustment ex factory 6l and 3l
  • pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
  • water supply from left/right/back or top
  • low noise (group I acc. to
    German Noise Specification)
  • insulated against condensation
  • ½" water supply connection including integrated
    angle valve and push fit flexible hose union
  • no tools required for the installation
    of the inspection shaft incl. protection
    during construction phase
  • for vertical or horizontal use
  • flush pipe insulated against condensation
  • GROHE EcoJoy Technology
    for less water and perfect flow
  • fixing brackets
  • with inlet pipe and connector

Technical Information

Units per package

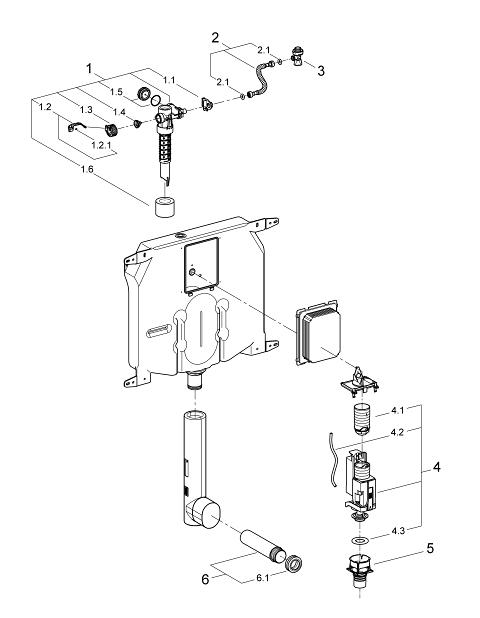

Pos.-nr. Prod. Description Order-nr.
* Optional accessories
1 Filling valve 43991000
1.1 Valve support 43995000
1.2 Lever 43734000
1.2.1 Seal 4377000M
1.3 Valve head 43536000
1.4 Membrane 4375800M
1.5 Screw cap 43735000
1.6 Valve float, 5 pcs. 4379100M
2 Tube 42233000
2.1 Sealing washer 0319100M
3 Angle valve 42343000
4 Dual Flush discharge valve AV1 42320000
4.1 Extension for overflow pipe 42313000
4.2 Pneumatic hose 42319000
4.3 Seal 42310000
5 Valve seat for flushing cistern Italy 42316000
6 WC inlet and outlet connecting set 37311K00
6.1 Basin fastening 43511SH0
6.2 Connector 37119000
